This fiberglass screen collection is designed for exterior Zip Blinds, offering durability and precise light control. Available in 1%, 5%, 10%, 20%, 40%, and 50% openness.
A unique 100% blackout fabric with the refined texture of screen material.
It delivers complete light blocking — a rare performance beyond typical screen fabrics — in a modern, safe solution for interior spaces.

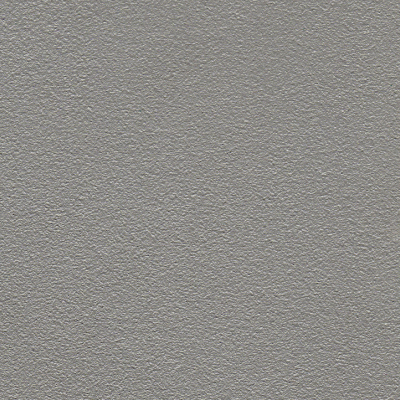

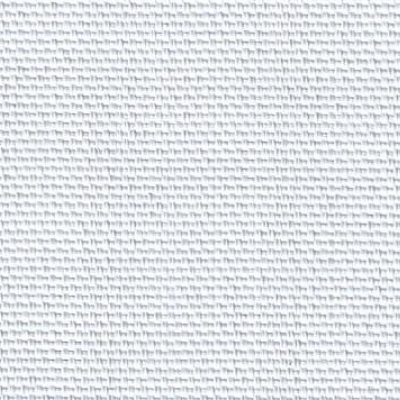

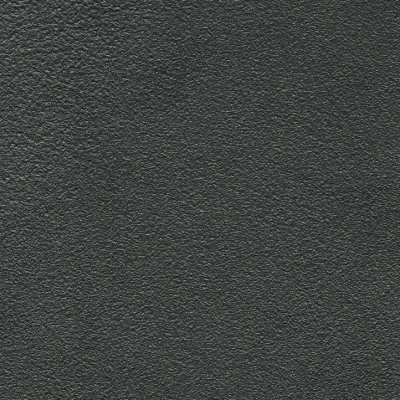

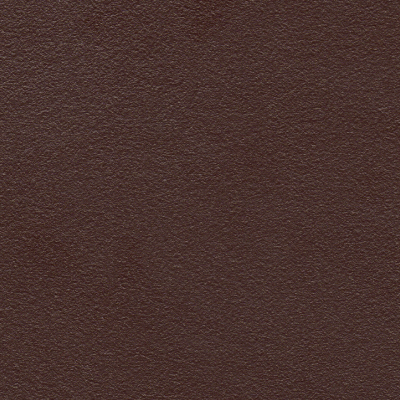

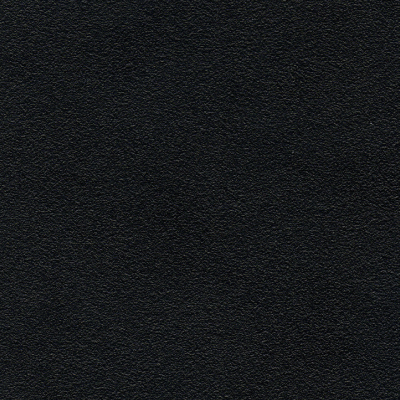

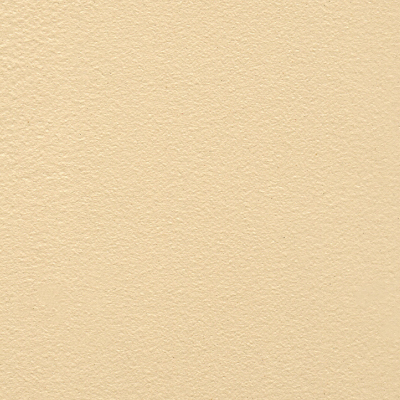

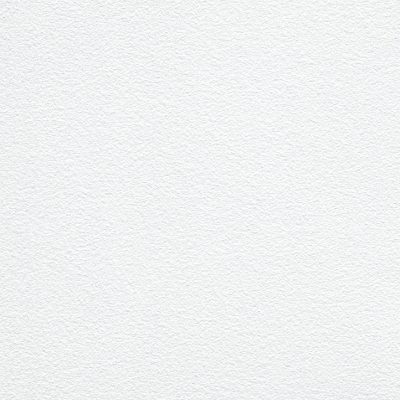

Zip Blind hardware is available in six refined matte colors. The soft matte texture enhances elegance while seamlessly complementing modern architecture.
FIBERGLASS
SCREEN OUTDOOR
Crafted with high-performance fiberglass yarn, this fabric delivers exceptional dimensional stability, durability, and resistance to harsh weather conditions — making it ideal for demanding outdoor environments. Available in multiple openness factors — 1%, 5%, 10%, 20%, 40%, and 50% — the collection offers flexible light control, glare reduction, and ventilation performance, allowing designers to balance privacy, transparency, and solar protection with precision.

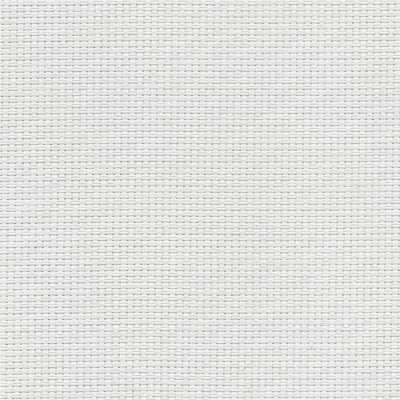

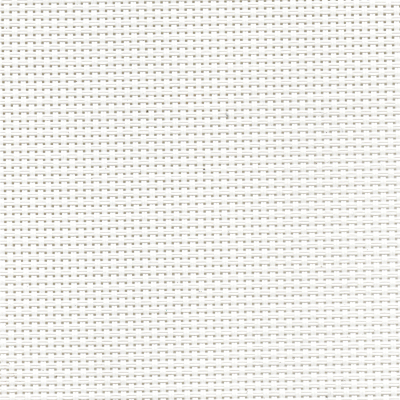

CB25-4001G_White
Code Product
CB25-01-4001G_White 1%
CB25-05-4001G_White 5%
Color Name
White
Composition
42% glassfiber 58% PVC
Standard Width (cm)
300cm
Average Roll Length (m)
25-35m
Openness Factor (%)
1-5%
Fabric Thickness (mm)
0.70mm±5%
0.61mm±5%
Mesh Weight (g/sqm)
630g/m2±5%
550g/m2±5%
Yarn Count (inch)
46×41
39×38
Breaking Strength (N)
Warp≥2000N /5cm Weft≥2000N /5cm
Warp≥1600N /5cm Weft≥2000N /5cm
Fire Retardant
NFPA 701 #1
BS 5867-2008 part2
Color Fastness
ISO 105 B02 8 Grade
Greenguard
Greenguard Gold Certification
Reach
240 SVHC analysis
Free Formaldehyde content
GB/T 2912.1
DMF
ISO 16186
Extractable Heavy Metal
GB/T 17593

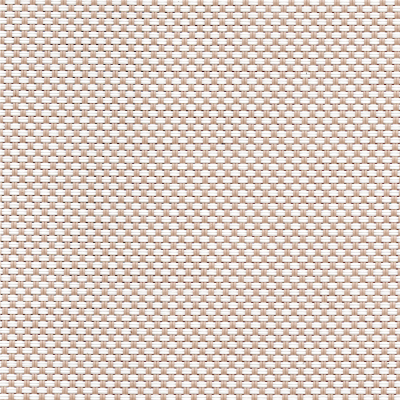

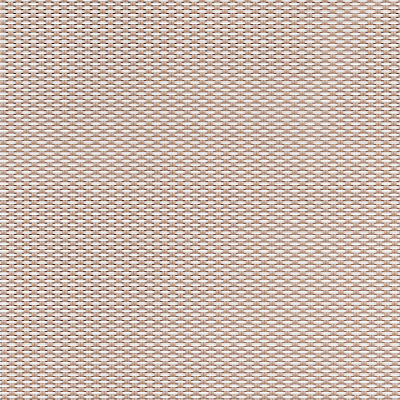

CB25-4008G_Beige White
Code Product
CB25–01-4008G_Beige White 1%
CB25-05-4008G_Beige White 5%
Color Name
Beige White
Composition
42% glassfiber 58% PVC
Standard Width (cm)
300cm
Average Roll Length (m)
25-35m
Openness Factor (%)
1-5%
Fabric Thickness (mm)
0.70mm±5%
0.61mm±5%
Mesh Weight (g/sqm)
630g/m2±5%
550g/m2±5%
Yarn Count (inch)
46×41
39×38
Breaking Strength (N)
Warp≥2000N /5cm Weft≥2000N /5cm
Warp≥1600N /5cm Weft≥2000N /5cm
Fire Retardant
NFPA 701 #1
BS 5867-2008 part2
Color Fastness
ISO 105 B02 8 Grade
Greenguard
Greenguard Gold Certification
Reach
240 SVHC analysis
Free Formaldehyde content
GB/T 2912.1
DMF
ISO 16186
Extractable Heavy Metal
GB/T 17593

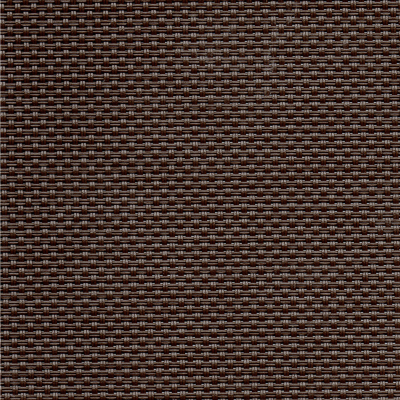

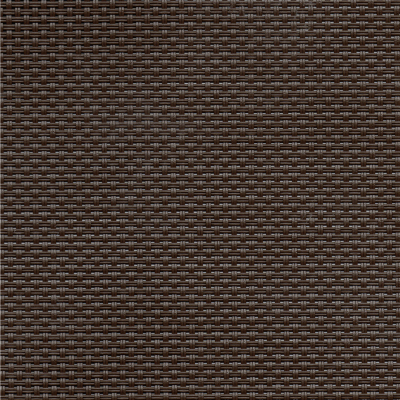

CB25-4007G_Coffee
Code Product
CB25-05-4007G_Coffee 5%
CB25-10-4007G_Coffee 10%
Color Name
Coffee
Composition
42% glassfiber 58% PVC
Standard Width (cm)
300cm
Average Roll Length (m)
25-35m
Openness Factor (%)
5-10%
Fabric Thickness (mm)
0.61mm±5%
0.64mm±5%
Mesh Weight (g/sqm)
550g/m2±5%
520g/m2±5%
Yarn Count (inch)
39×38
39×34
Breaking Strength (N)
Warp≥1600N /5cm Weft≥2000N /5cm
Warp≥1600N /5cm Weft≥1500N /5cm
Fire Retardant
NFPA 701 #1
BS 5867-2008 part2
Color Fastness
ISO 105 B02 8 Grade
Greenguard
Greenguard Gold Certification
Reach
240 SVHC analysis
Free Formaldehyde content
GB/T 2912.1
DMF
ISO 16186
Extractable Heavy Metal
GB/T 17593

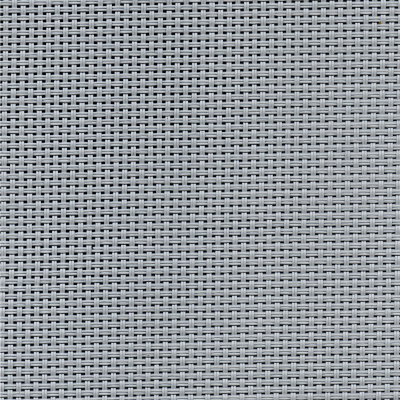

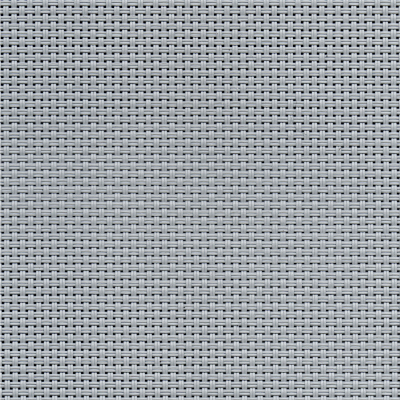

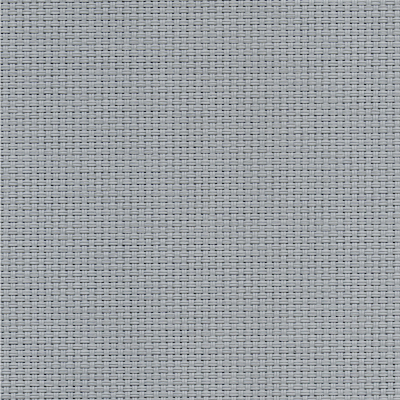

CB25-4003G_Light Grey
Code Product
CB25-01-4003G_Light Grey 1%
CB25-05-4003G_Light Grey 5%
CB25-10-4003G_Light Grey 10%
Color Name
Light Grey
Composition
42% glassfiber 58% PVC
Standard Width (cm)
300cm
Average Roll Length (m)
25-35m
Openness Factor (%)
1-5-10%
Fabric Thickness (mm)
0.70mm±5%
0.61mm±5%
0.64mm±5%
Mesh Weight (g/sqm)
630g/m2±5%
550g/m2±5%
520g/m2±5%
Yarn Count (inch)
46×41
39×38
39×34
Breaking Strength (N)
Warp≥2000N /5cm Weft≥2000N /5cm
Warp≥1600N /5cm Weft≥2000N /5cm
Warp≥1600N /5cm Weft≥1500N /5cm
Fire Retardant
NFPA 701 #1
BS 5867-2008 part2
Color Fastness
ISO 105 B02 8 Grade
Greenguard
Greenguard Gold Certification
Reach
240 SVHC analysis
Free Formaldehyde content
GB/T 2912.1
DMF
ISO 16186
Extractable Heavy Metal
GB/T 17593

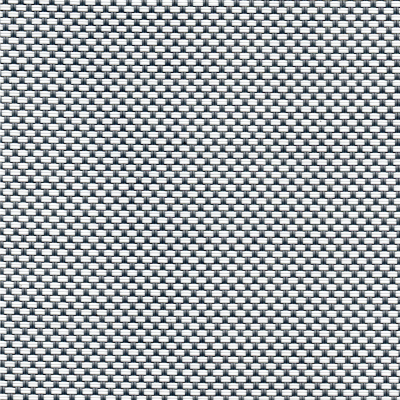

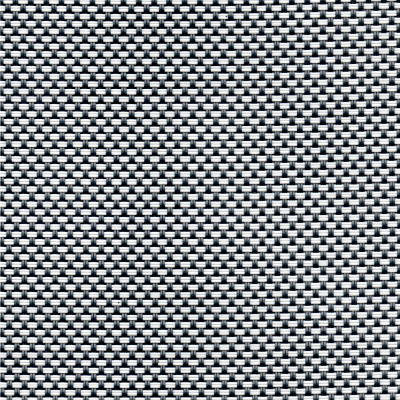

CB25-4009G_Grey White
Code Product
CB25-01-4009G_Grey White 1%
CB25-05-4009G_Grey White 5%
Color Name
Grey White
Composition
42% glassfiber 58% PVC
Standard Width (cm)
300cm
Average Roll Length (m)
25-35m
Openness Factor (%)
1-5%
Fabric Thickness (mm)
0.70mm±5%
0.61mm±5%
Mesh Weight (g/sqm)
630g/m2±5%
550g/m2±5%
Yarn Count (inch)
46×41
39×38
Breaking Strength (N)
Warp≥2000N /5cm Weft≥2000N /5cm
Warp≥1600N /5cm Weft≥2000N /5cm
Fire Retardant
NFPA 701 #1
BS 5867-2008 part2
Color Fastness
ISO 105 B02 8 Grade
Greenguard
Greenguard Gold Certification
Reach
240 SVHC analysis
Free Formaldehyde content
GB/T 2912.1
DMF
ISO 16186
Extractable Heavy Metal
GB/T 17593

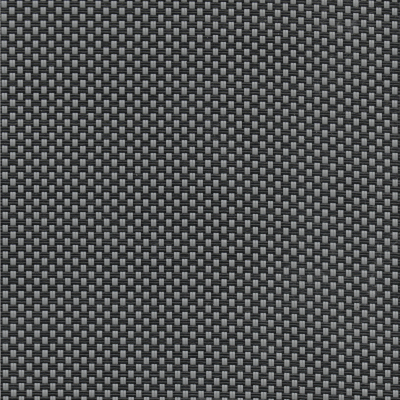

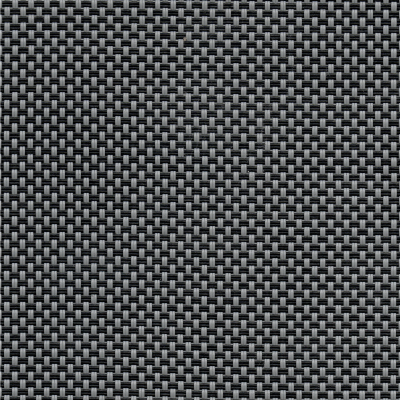

CB25-4005G_Black Grey
Code Product
CB25-01-4005G_Black Grey 1%
CB25-05-4005G_Black Grey 5%
Color Name
Black Grey
Composition
42% glassfiber 58% PVC
Standard Width (cm)
300cm
Average Roll Length (m)
25-35m
Openness Factor (%)
1-5%
Fabric Thickness (mm)
0.70mm±5%
0.61mm±5%
Mesh Weight (g/sqm)
630g/m2±5%
550g/m2±5%
Yarn Count (inch)
46×41
39×38
Breaking Strength (N)
Warp≥2000N /5cm Weft≥2000N /5cm
Warp≥1600N /5cm Weft≥2000N /5cm
Fire Retardant
NFPA 701 #1
BS 5867-2008 part2
Color Fastness
ISO 105 B02 8 Grade
Greenguard
Greenguard Gold Certification
Reach
240 SVHC analysis
Free Formaldehyde content
GB/T 2912.1
DMF
ISO 16186
Extractable Heavy Metal
GB/T 17593

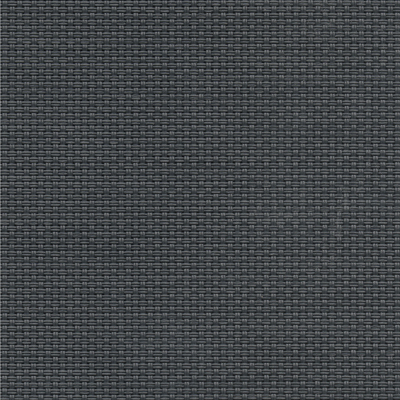

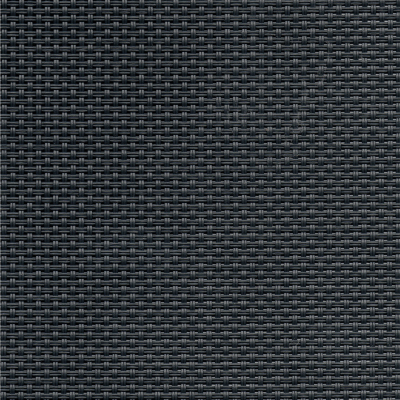

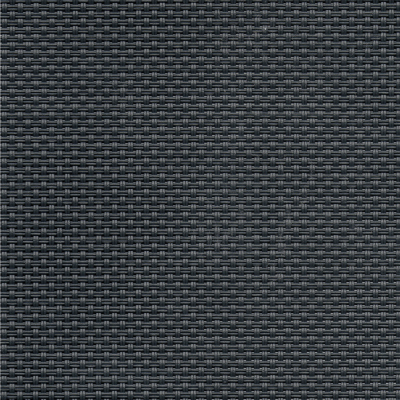

CB25-4004G_Darkt Grey
Code Product
CB25-01-4004G_Darkt Grey 1%
CB25-05-4004G_Darkt Grey 5%
CB25-10-4004G_Darkt Grey 10%
Color Name
Darkt Grey
Composition
42% glassfiber 58% PVC
Standard Width (cm)
300cm
Average Roll Length (m)
25-35m
Openness Factor (%)
1-5-10%
Fabric Thickness (mm)
0.70mm±5%
0.61mm±5%
0.64mm±5%
Mesh Weight (g/sqm)
630g/m2±5%
550g/m2±5%
520g/m2±5%
Yarn Count (inch)
46×41
39×38
39×34
Breaking Strength (N)
Warp≥2000N /5cm Weft≥2000N /5cm
Warp≥1600N /5cm Weft≥2000N /5cm
Warp≥1600N /5cm Weft≥1500N /5cm
Fire Retardant
NFPA 701 #1
BS 5867-2008 part2
Color Fastness
ISO 105 B02 8 Grade
Greenguard
Greenguard Gold Certification
Reach
240 SVHC analysis
Free Formaldehyde content
GB/T 2912.1
DMF
ISO 16186
Extractable Heavy Metal
GB/T 17593

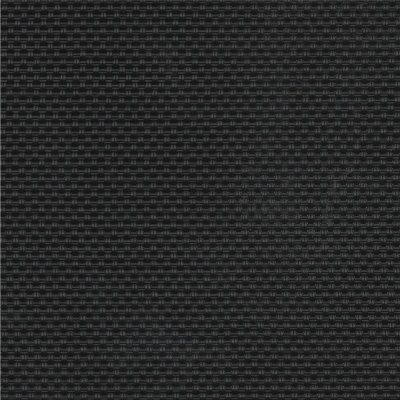

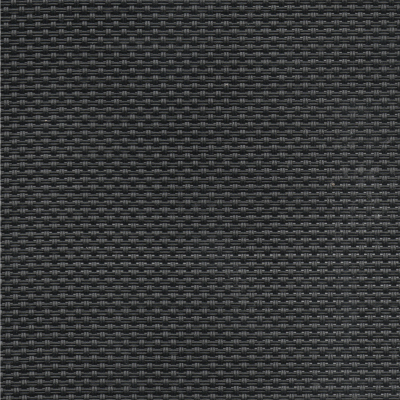

CB25-4006G_Black
Code Product
CB25-01-4006G_Black 1%
CB25-05-4006G_Black 5%
CB25-10-4006G_Black 10%
Color Name
Black
Composition
42% glassfiber 58% PVC
Standard Width (cm)
300cm
Average Roll Length (m)
25-35m
Openness Factor (%)
1-5-10%
Fabric Thickness (mm)
0.70mm±5%
0.61mm±5%
0.64mm±5%
Mesh Weight (g/sqm)
630g/m2±5%
550g/m2±5%
520g/m2±5%
Yarn Count (inch)
46×41
39×38
39×34
Breaking Strength (N)
Warp≥2000N /5cm Weft≥2000N /5cm
Warp≥1600N /5cm Weft≥2000N /5cm
Warp≥1600N /5cm Weft≥1500N /5cm
Fire Retardant
NFPA 701 #1
BS 5867-2008 part2
Color Fastness
ISO 105 B02 8 Grade
Greenguard
Greenguard Gold Certification
Reach
240 SVHC analysis
Free Formaldehyde content
GB/T 2912.1
DMF
ISO 16186
Extractable Heavy Metal
GB/T 17593

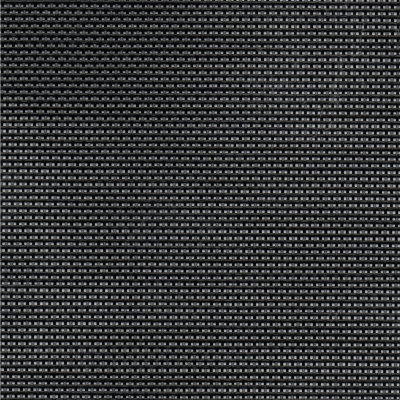

CB25-20-2006G_Black
Code Product
CB25-20-2006G_Black
Color Name
Black
Composition
35% glassfiber 65% PVC
Standard Width (cm)
300cm
Average Roll Length (m)
35-40m
Openness Factor (%)
20%
Fabric Thickness (mm)
0.59mm±5%
Mesh Weight (g/sqm)
305g/m2±5%
Yarn Count (inch)
22×18
Breaking Strength (N)
Warp≥1100N /5cm
Weft≥850N /5cm
Fire Retardant
NFPA 701 #1
BS 5867-2008 part2
Color Fastness
ISO 105 B02 8 Grade
Greenguard
Greenguard Gold Certification
Reach
240 SVHC analysis
Free Formaldehyde content
GB/T 2912.1
DMF
ISO 16186
Extractable Heavy Metal
GB/T 17593

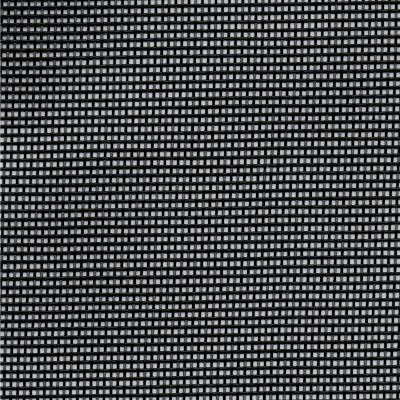

CB25-40-1006G_Black
Code Product
CB25-40-1006G_Black
Color Name
Black
Composition
35% glassfiber 65% PVC
Standard Width (cm)
300cm
Average Roll Length (m)
35-40m
Openness Factor (%)
40%
Fabric Thickness (mm)
0.59mm±5%
Mesh Weight (g/sqm)
305g/m2±5%
Yarn Count (inch)
22×18
Breaking Strength (N)
Warp≥1100N /5cm
Weft≥850N /5cm
Fire Retardant
NFPA 701 #1
BS 5867-2008 part2
Color Fastness
ISO 105 B02 8 Grade
Greenguard
Greenguard Gold Certification
Reach
240 SVHC analysis
Free Formaldehyde content
GB/T 2912.1
DMF
ISO 16186
Extractable Heavy Metal
GB/T 17593

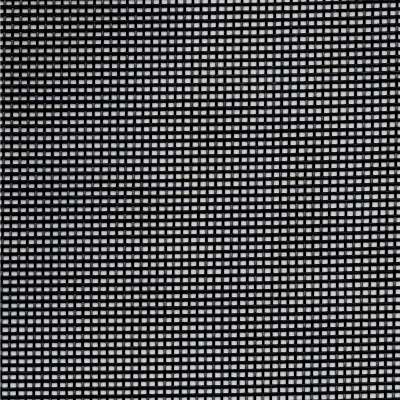

CB25-50-1006G_Black
Code Product
CB25-50-1006G_Black
Color Name
Black
Composition
35% glassfiber 65% PVC
Standard Width (cm)
300cm
Average Roll Length (m)
35-40m
Openness Factor (%)
50%
Fabric Thickness (mm)
0.59mm±5%
Mesh Weight (g/sqm)
305g/m2±5%
Yarn Count (inch)
22×18
Breaking Strength (N)
Warp≥1100N /5cm
Weft≥850N /5cm
Fire Retardant
NFPA 701 #1
BS 5867-2008 part2
Color Fastness
ISO 105 B02 8 Grade
Greenguard
Greenguard Gold Certification
Reach
240 SVHC analysis
Free Formaldehyde content
GB/T 2912.1
DMF
ISO 16186
Extractable Heavy Metal
GB/T 17593
NIGHTFALL
BLACK-OUT 100%
This collection redefines traditional screen fabrics by achieving what is rarely possible — 100% blackout performance with the refined texture of a screen material. While conventional screen fabrics are designed for light filtration and visibility, this innovative construction completely blocks light, delivering total privacy and superior room darkening. The result is a modern architectural aesthetic combined with absolute functional performance.
NF0101_White
Code Product
NF0101_White
Color Name
White
Composition
24% Polyester 76% PVC
Openness Factor
0%
UV Screen
100%
Width (cm)
250 – 300 cm
Weight (ISO 2286 2)
630±5% g/m2
Thickness (ISO 2286 3)
0.70±5% mm
Breaking (ISO 13934 1)
Warp ≥2250 N/5cm
Weft ≥1830 N/5cm
Tear (ISO 4674)
Warp ≥130 N
Weft ≥100 N
Packing (Roll Length)
32.8 yards / 30 Im
Fire, Smoke Classification
FR (US) – NFPA 701 TM#1, B1 (CN) – GB17591, BS (GB) – 5867 Part2 TypeB, B1 (DE) – DIN4102
Health & Safety
Oeko-tex Standard 100 class IV, RoHS Directive (EU)2015/863, AATCC112-2014, Greenguard@ Gold, EN71 Part 3:1994, GB18586 – 2001
Bacterial & Fungal Resistance
ASTM G21-15 0Grade None fungi growth, ASTM E 2180-07 Reduce more than 99.9% of bacteria
Colour fastness to light
≥Grade 8 ISO105 B02:2014, ≥4.0 AATCC TM 16.3-2014; Option 3; Xenon Arc Lamp

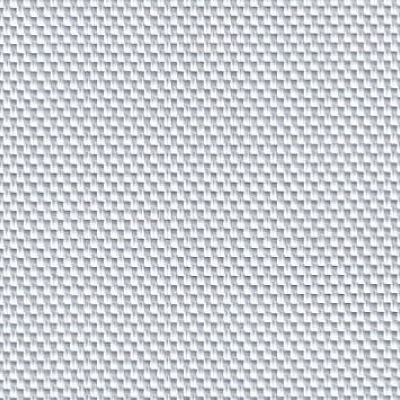

NF0105_White Grey
Code Product
NF0105_White Grey
Color Name
White Grey
Composition
24% Polyester 76% PVC
Openness Factor
0%
UV Screen
100%
Width (cm)
250 – 300 cm
Weight (ISO 2286 2)
630±5% g/m2
Thickness (ISO 2286 3)
0.70±5% mm
Breaking (ISO 13934 1)
Warp ≥2250 N/5cm
Weft ≥1830 N/5cm
Tear (ISO 4674)
Warp ≥130 N
Weft ≥100 N
Packing (Roll Length)
32.8 yards / 30 Im
Fire, Smoke Classification
FR (US) – NFPA 701 TM#1, B1 (CN) – GB17591, BS (GB) – 5867 Part2 TypeB, B1 (DE) – DIN4102
Health & Safety
Oeko-tex Standard 100 class IV, RoHS Directive (EU)2015/863, AATCC112-2014, Greenguard@ Gold, EN71 Part 3:1994, GB18586 – 2001
Bacterial & Fungal Resistance
ASTM G21-15 0Grade None fungi growth, ASTM E 2180-07 Reduce more than 99.9% of bacteria
Colour fastness to light
≥Grade 8 ISO105 B02:2014, ≥4.0 AATCC TM 16.3-2014; Option 3; Xenon Arc Lamp

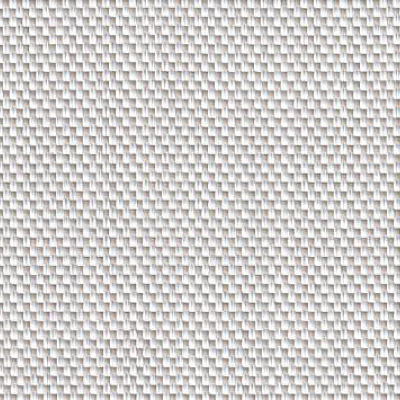

NF0107_White Sand
Code Product
NF0107_White Sand
Color Name
White Sand
Composition
24% Polyester 76% PVC
Openness Factor
0%
UV Screen
100%
Width (cm)
250 – 300 cm
Weight (ISO 2286 2)
630±5% g/m2
Thickness (ISO 2286 3)
0.70±5% mm
Breaking (ISO 13934 1)
Warp ≥2250 N/5cm
Weft ≥1830 N/5cm
Tear (ISO 4674)
Warp ≥130 N
Weft ≥100 N
Packing (Roll Length)
32.8 yards / 30 Im
Fire, Smoke Classification
FR (US) – NFPA 701 TM#1, B1 (CN) – GB17591, BS (GB) – 5867 Part2 TypeB, B1 (DE) – DIN4102
Health & Safety
Oeko-tex Standard 100 class IV, RoHS Directive (EU)2015/863, AATCC112-2014, Greenguard@ Gold, EN71 Part 3:1994, GB18586 – 2001
Bacterial & Fungal Resistance
ASTM G21-15 0Grade None fungi growth, ASTM E 2180-07 Reduce more than 99.9% of bacteria
Colour fastness to light
≥Grade 8 ISO105 B02:2014, ≥4.0 AATCC TM 16.3-2014; Option 3; Xenon Arc Lamp

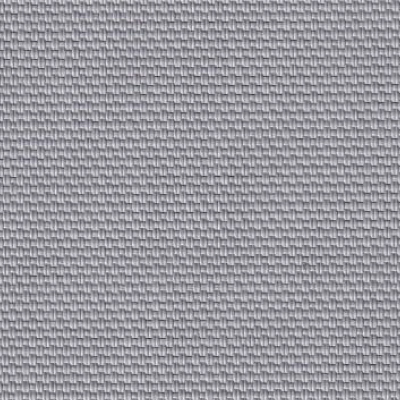

NF0505_Grey
Code Product
NF0505_Grey
Color Name
Grey
Composition
24% Polyester 76% PVC
Openness Factor
0%
UV Screen
100%
Width (cm)
250 – 300 cm
Weight (ISO 2286 2)
630±5% g/m2
Thickness (ISO 2286 3)
0.70±5% mm
Breaking (ISO 13934 1)
Warp ≥2250 N/5cm
Weft ≥1830 N/5cm
Tear (ISO 4674)
Warp ≥130 N
Weft ≥100 N
Packing (Roll Length)
32.8 yards / 30 Im
Fire, Smoke Classification
FR (US) – NFPA 701 TM#1, B1 (CN) – GB17591, BS (GB) – 5867 Part2 TypeB, B1 (DE) – DIN4102
Health & Safety
Oeko-tex Standard 100 class IV, RoHS Directive (EU)2015/863, AATCC112-2014, Greenguard@ Gold, EN71 Part 3:1994, GB18586 – 2001
Bacterial & Fungal Resistance
ASTM G21-15 0Grade None fungi growth, ASTM E 2180-07 Reduce more than 99.9% of bacteria
Colour fastness to light
≥Grade 8 ISO105 B02:2014, ≥4.0 AATCC TM 16.3-2014; Option 3; Xenon Arc Lamp

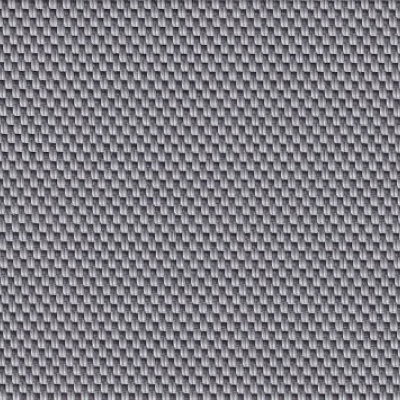

NF0540_Grey Dark Grey
Code Product
NF0540_Grey Dark Grey
Color Name
Grey Dark Grey
Composition
24% Polyester 76% PVC
Openness Factor
0%
UV Screen
100%
Width (cm)
250 – 300 cm
Weight (ISO 2286 2)
630±5% g/m2
Thickness (ISO 2286 3)
0.70±5% mm
Breaking (ISO 13934 1)
Warp ≥2250 N/5cm
Weft ≥1830 N/5cm
Tear (ISO 4674)
Warp ≥130 N
Weft ≥100 N
Packing (Roll Length)
32.8 yards / 30 Im
Fire, Smoke Classification
FR (US) – NFPA 701 TM#1, B1 (CN) – GB17591, BS (GB) – 5867 Part2 TypeB, B1 (DE) – DIN4102
Health & Safety
Oeko-tex Standard 100 class IV, RoHS Directive (EU)2015/863, AATCC112-2014, Greenguard@ Gold, EN71 Part 3:1994, GB18586 – 2001
Bacterial & Fungal Resistance
ASTM G21-15 0Grade None fungi growth, ASTM E 2180-07 Reduce more than 99.9% of bacteria
Colour fastness to light
≥Grade 8 ISO105 B02:2014, ≥4.0 AATCC TM 16.3-2014; Option 3; Xenon Arc Lamp

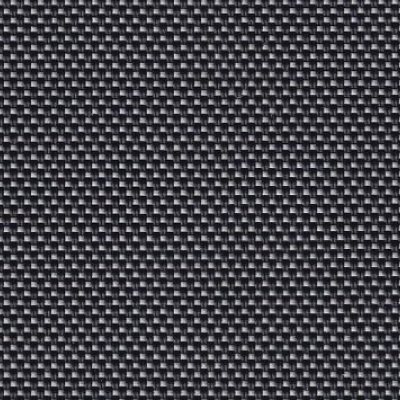

NF0405_Black Grey
Code Product
NF0405_Black Grey
Color Name
Black Grey
Composition
24% Polyester 76% PVC
Openness Factor
0%
UV Screen
100%
Width (cm)
250 – 300 cm
Weight (ISO 2286 2)
630±5% g/m2
Thickness (ISO 2286 3)
0.70±5% mm
Breaking (ISO 13934 1)
Warp ≥2250 N/5cm
Weft ≥1830 N/5cm
Tear (ISO 4674)
Warp ≥130 N
Weft ≥100 N
Packing (Roll Length)
32.8 yards / 30 Im
Fire, Smoke Classification
FR (US) – NFPA 701 TM#1, B1 (CN) – GB17591, BS (GB) – 5867 Part2 TypeB, B1 (DE) – DIN4102
Health & Safety
Oeko-tex Standard 100 class IV, RoHS Directive (EU)2015/863, AATCC112-2014, Greenguard@ Gold, EN71 Part 3:1994, GB18586 – 2001
Bacterial & Fungal Resistance
ASTM G21-15 0Grade None fungi growth, ASTM E 2180-07 Reduce more than 99.9% of bacteria
Colour fastness to light
≥Grade 8 ISO105 B02:2014, ≥4.0 AATCC TM 16.3-2014; Option 3; Xenon Arc Lamp

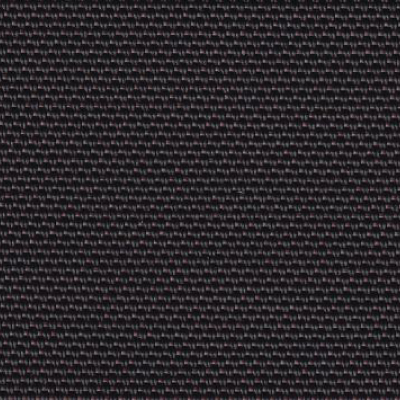

NF0406_Black Bronze
Code Product
NF0406_Black Bronze
Color Name
Black Bronze
Composition
24% Polyester 76% PVC
Openness Factor
0%
UV Screen
100%
Width (cm)
250 – 300 cm
Weight (ISO 2286 2)
630±5% g/m2
Thickness (ISO 2286 3)
0.70±5% mm
Breaking (ISO 13934 1)
Warp ≥2250 N/5cm
Weft ≥1830 N/5cm
Tear (ISO 4674)
Warp ≥130 N
Weft ≥100 N
Packing (Roll Length)
32.8 yards / 30 Im
Fire, Smoke Classification
FR (US) – NFPA 701 TM#1, B1 (CN) – GB17591, BS (GB) – 5867 Part2 TypeB, B1 (DE) – DIN4102
Health & Safety
Oeko-tex Standard 100 class IV, RoHS Directive (EU)2015/863, AATCC112-2014, Greenguard@ Gold, EN71 Part 3:1994, GB18586 – 2001
Bacterial & Fungal Resistance
ASTM G21-15 0Grade None fungi growth, ASTM E 2180-07 Reduce more than 99.9% of bacteria
Colour fastness to light
≥Grade 8 ISO105 B02:2014, ≥4.0 AATCC TM 16.3-2014; Option 3; Xenon Arc Lamp

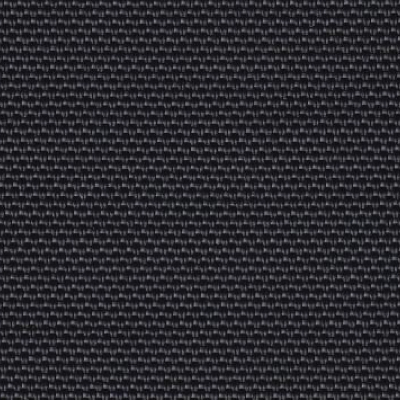

NF0539_Black Dark Grey
Code Product
NF0539_Black Dark Grey
Color Name
Black Dark Grey
Composition
24% Polyester 76% PVC
Openness Factor
0%
UV Screen
100%
Width (cm)
250 – 300 cm
Weight (ISO 2286 2)
630±5% g/m2
Thickness (ISO 2286 3)
0.70±5% mm
Breaking (ISO 13934 1)
Warp ≥2250 N/5cm
Weft ≥1830 N/5cm
Tear (ISO 4674)
Warp ≥130 N
Weft ≥100 N
Packing (Roll Length)
32.8 yards / 30 Im
Fire, Smoke Classification
FR (US) – NFPA 701 TM#1, B1 (CN) – GB17591, BS (GB) – 5867 Part2 TypeB, B1 (DE) – DIN4102
Health & Safety
Oeko-tex Standard 100 class IV, RoHS Directive (EU)2015/863, AATCC112-2014, Greenguard@ Gold, EN71 Part 3:1994, GB18586 – 2001
Bacterial & Fungal Resistance
ASTM G21-15 0Grade None fungi growth, ASTM E 2180-07 Reduce more than 99.9% of bacteria
Colour fastness to light
≥Grade 8 ISO105 B02:2014, ≥4.0 AATCC TM 16.3-2014; Option 3; Xenon Arc Lamp

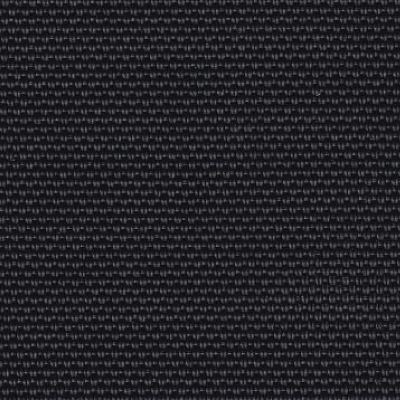

NF0404_Black
Code Product
NF0404_Black
Color Name
Black
Composition
24% Polyester 76% PVC
Openness Factor
0%
UV Screen
100%
Width (cm)
250 – 300 cm
Weight (ISO 2286 2)
630±5% g/m2
Thickness (ISO 2286 3)
0.70±5% mm
Breaking (ISO 13934 1)
Warp ≥2250 N/5cm
Weft ≥1830 N/5cm
Tear (ISO 4674)
Warp ≥130 N
Weft ≥100 N
Packing (Roll Length)
32.8 yards / 30 Im
Fire, Smoke Classification
FR (US) – NFPA 701 TM#1, B1 (CN) – GB17591, BS (GB) – 5867 Part2 TypeB, B1 (DE) – DIN4102
Health & Safety
Oeko-tex Standard 100 class IV, RoHS Directive (EU)2015/863, AATCC112-2014, Greenguard@ Gold, EN71 Part 3:1994, GB18586 – 2001
Bacterial & Fungal Resistance
ASTM G21-15 0Grade None fungi growth, ASTM E 2180-07 Reduce more than 99.9% of bacteria
Colour fastness to light
≥Grade 8 ISO105 B02:2014, ≥4.0 AATCC TM 16.3-2014; Option 3; Xenon Arc Lamp
ALUMINIUM
THE COLORS
Our Zip Blind hardware is available in six carefully curated matte finishes, designed to elevate the overall architectural look. The soft matte texture enhances depth and sophistication, reducing glare while creating a calm, premium aesthetic. Each color is selected to complement modern façades and interior palettes, allowing seamless integration into any design concept.
Matt White
Matt Beige
Matt Coffee
Matt Light Grey
Matt Dark Grey
Matt Black
